Rotadyne Water Technologies

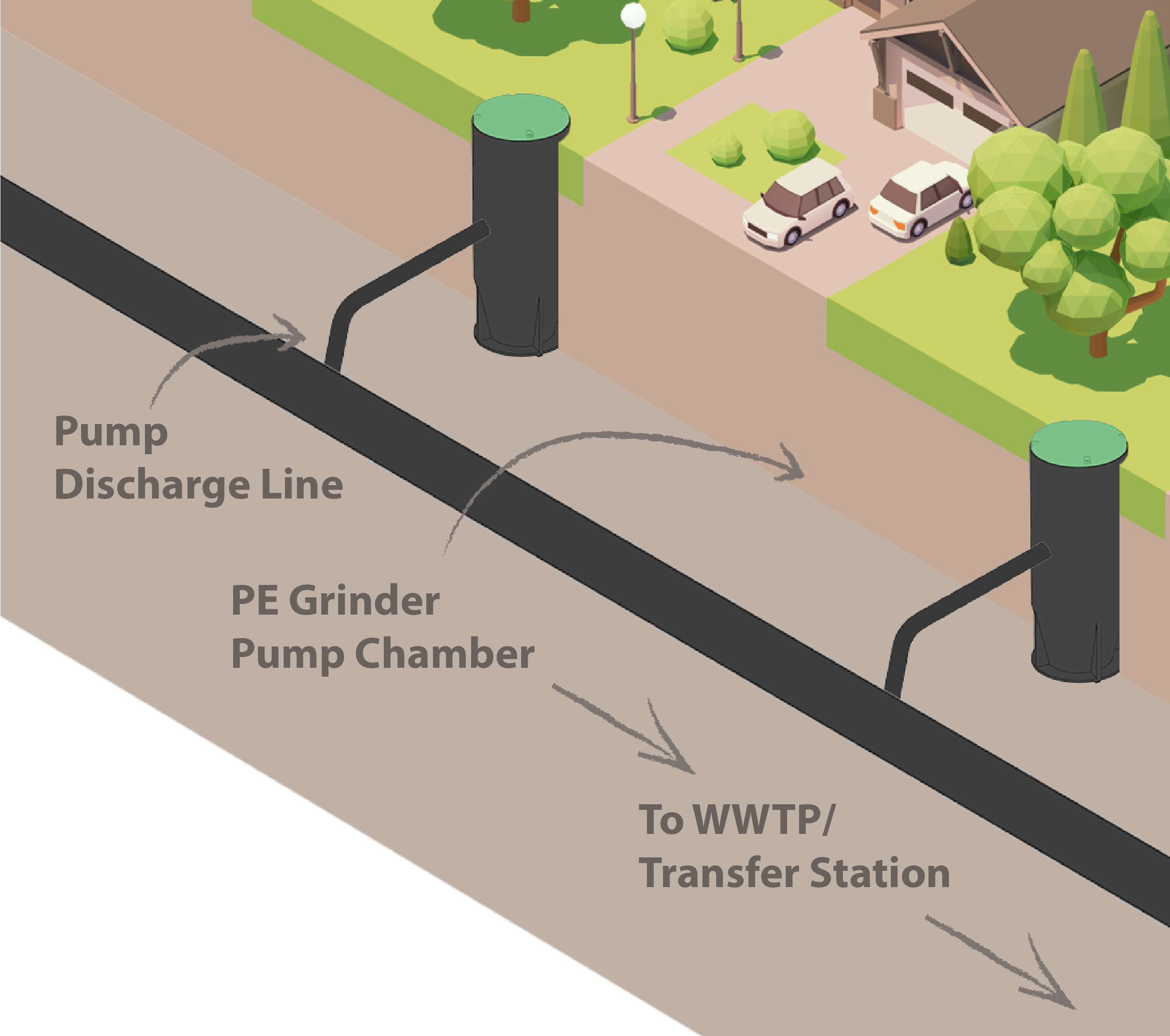

LOW PRESSURE SEWER SYSTEMS
SEPTIC TANK DEVELOPMENT UPGRADES, GREENFIELD SUBDIVISIONS, & UNDULATING SITES APPLICATIONS
Key Advantages
- Absolute minimal site excavation and dewatering
- Ideal for rocky and environmentally sensitive sites
- Great for staged projects, facilitating roll out of infrastructure to support cashflows
- High solids handling with minimal wear and tear
- Hardened, corrosion resistant materials
- Pre-packaged Rotadyne Poly pumping station with certifications to AS1546.1. NSW department of Health
A RANGE OF LOW GRINDER PUMPING OPTIONS FOR A RANGE OF REQUIREMENTS:
Corrosion resistance materials hardened to 55+ Rockwell hardness
Unique Cutter & Pumping Stage Separation

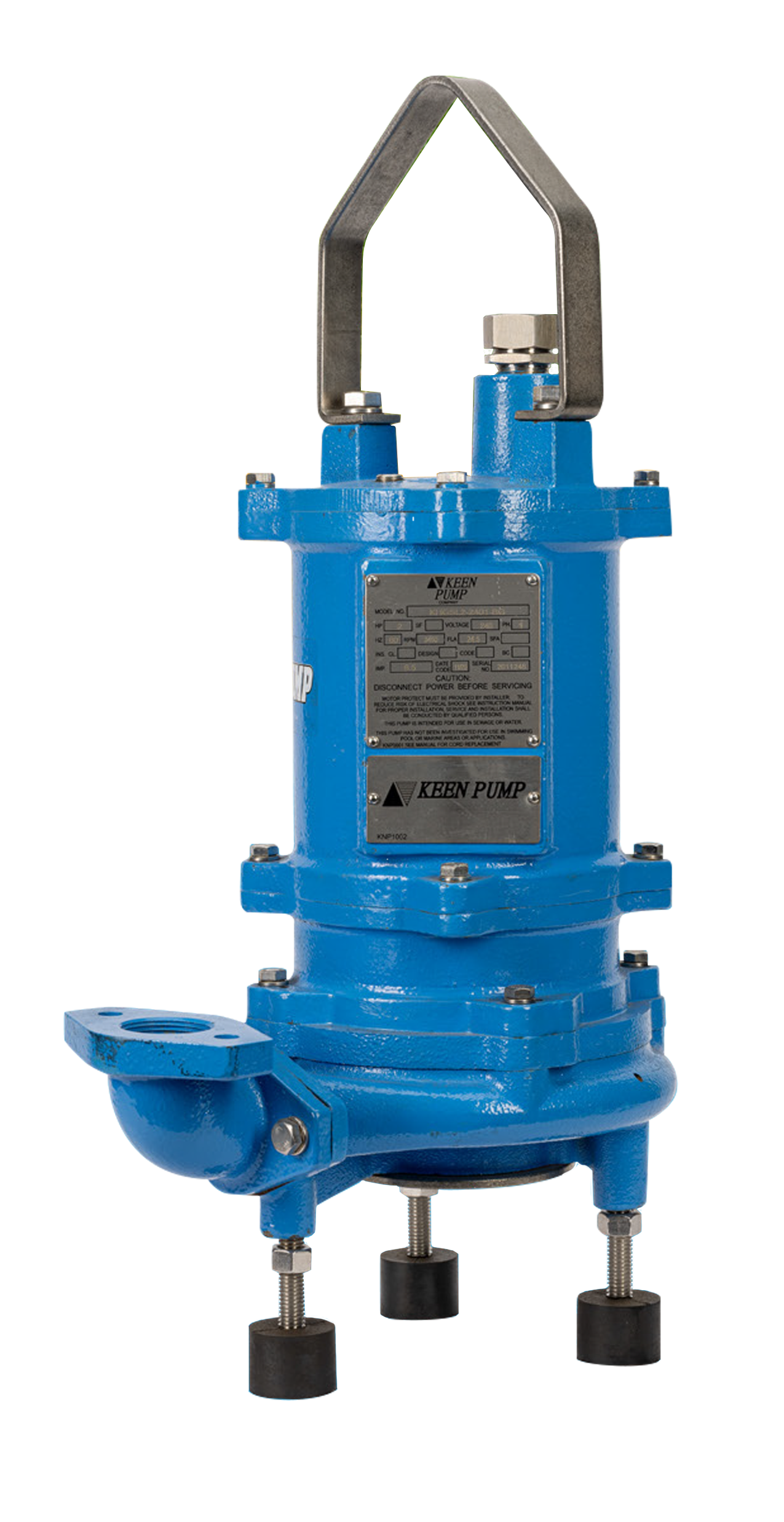

KEEN High Head Centrifugal Pump

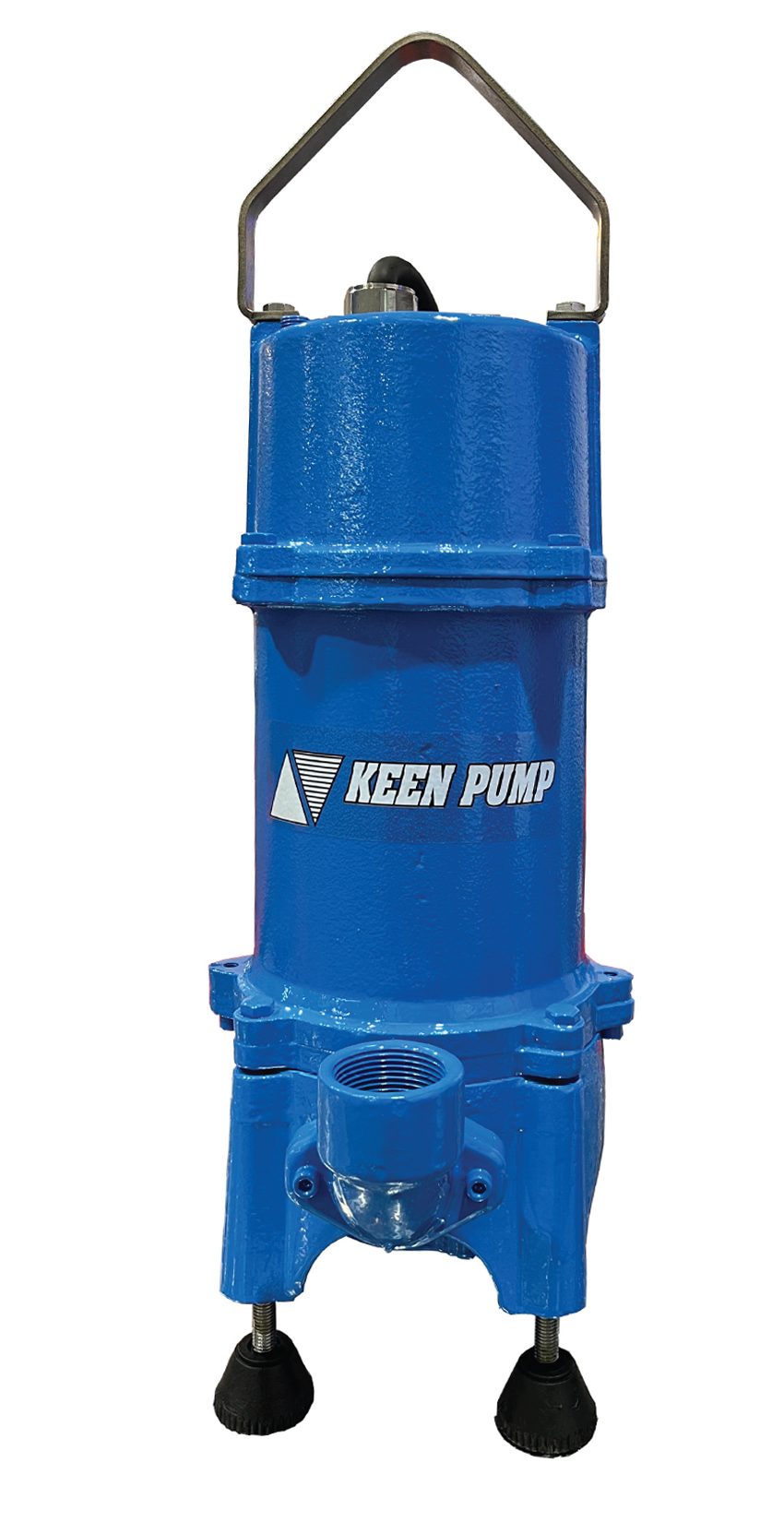

KEEN Turbine Grinder Pump

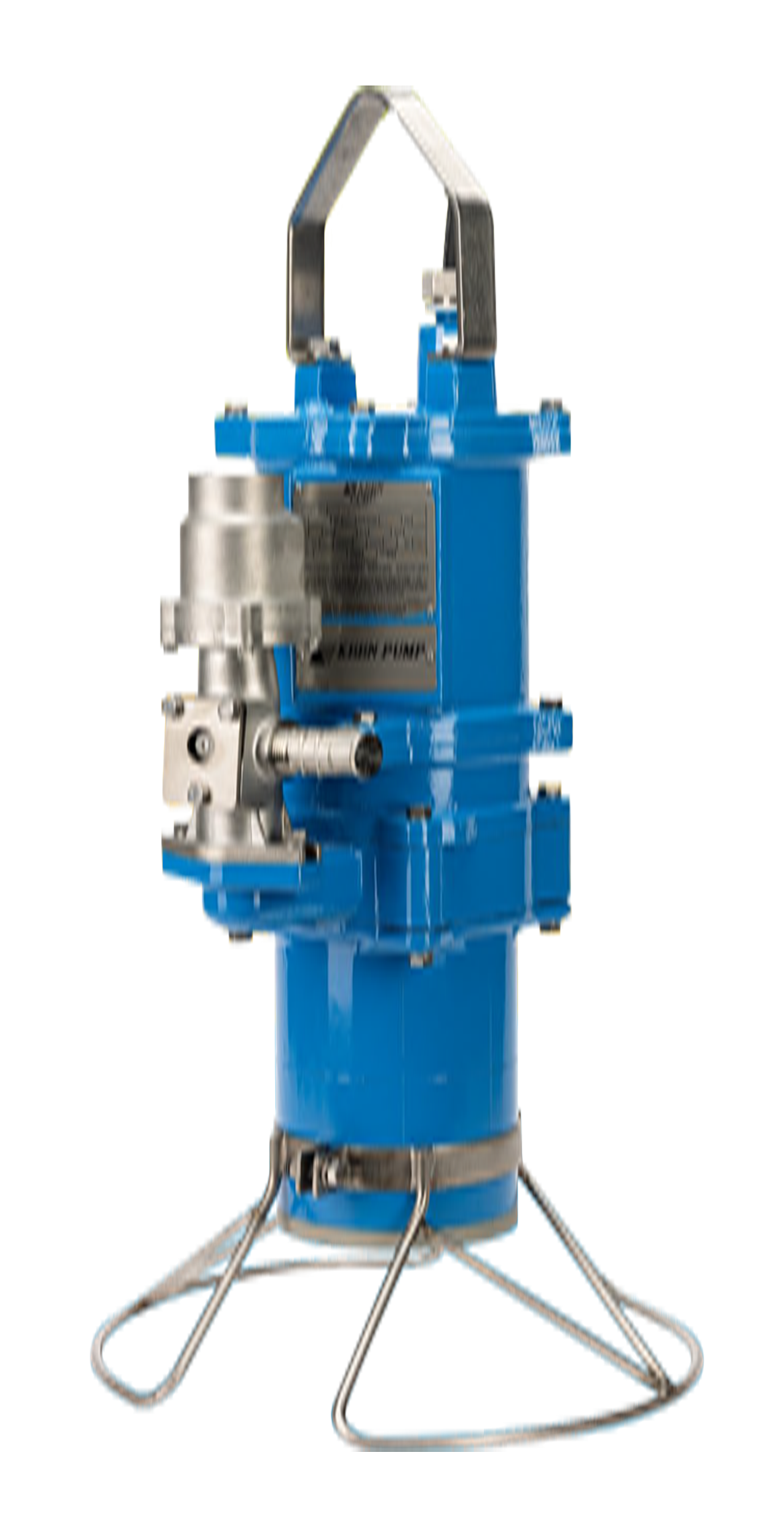

KEEN Progressive Cavity Pump

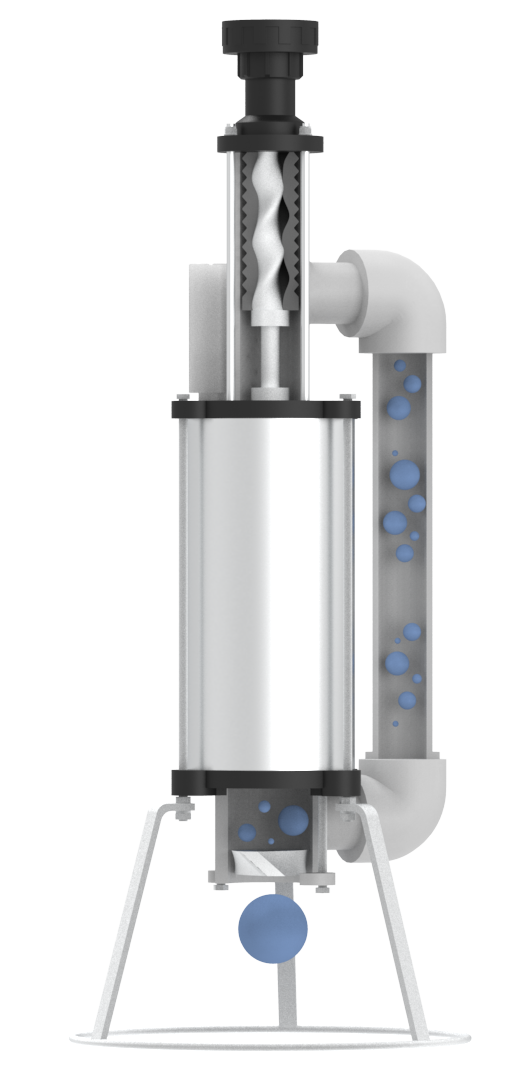

ROTAPRESS Water cooled Progressive Cavity Pump

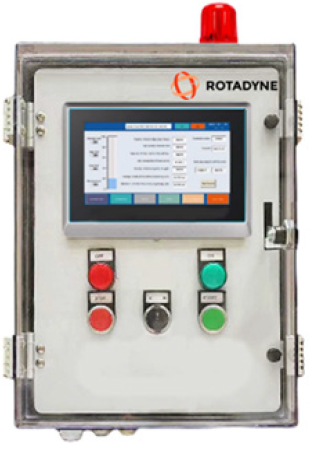

ROTA-100 PUMP CONTROLLER: INCREASE VISIBILITY OF YOUR NETWORK AND MAKE DATA DRIVEN DECISIONS
Navigate via the HMI interface input
Settable Functions:
- Pump Start Delay Time
- Pump Stop Delay Time
- Over Current Restart delay
- Over Pressure Restart delay
- Max Start Current
- Min Operating Current
- Normal Operating Current
- Run Time Limit

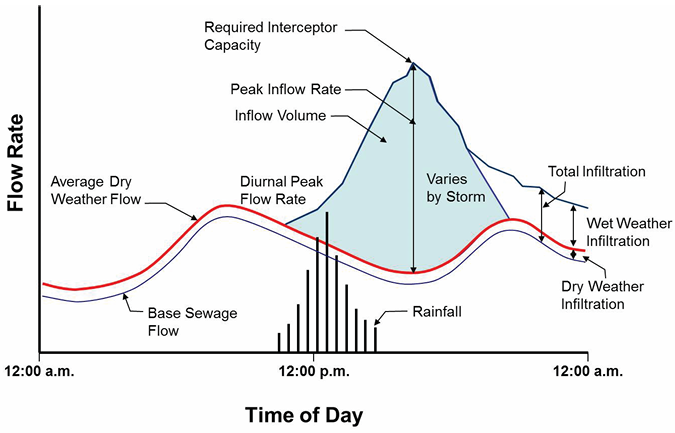

- Wet Weather Ingress notification
Home Page Parameters:
- Starts/Lasts 1hr
- Over Pressure Events/Last 1hr
- Overload Events/Last 1hr
- Running time /Last Cycle
- Avg Current/Last Cycle
- Max Current/Last Cycle
- Starting Current/Last Cycle
- Site Specific Input Settings
- Track Event Log
- Establish Trend
- Reset Data Logs
- Configuration
- Over Pressure Restart Count
- Over Current Restart Count
- Pump Flow Rate
- Flow Limit Count
- Max Level (For alarming purposes)
- Min Level (For alarming purposes)
- Max Run Time
- Starting Capacitor Run Time
- Max 24hr Run
Key Advantages
Durability
- Corrosion Free (LLDPE) collection chamber
- Compatible with acid sulphate soils
- Stainless steel guide rails and chain hoist
Credibility
- Australian owned manufacturing: 50 years experience
- Supporting buoyancy calcs and anchorage guidelines for site installation purposes
- Accreditations & Relevant Standards
Customisation
- Sized for your duty and control needs
- Class rate lids
- Configurable tank setups (max. depth 5m)
- Local and remote SMS alarms
Practicality
- Compact ‘Plug & Play’ control cabinet IP65
- Full automation control (inclusive of level control instrumentation)
- Internal or external isolation and check valve setup
- Expandable extra emergency storage (via storage logs)
